Glass Grinder Machine Ceramic Grinder Portable Power Stained Grinder Mini Griding Tool with Diamond Grinder Bit Portable Glass Grinder
7 sold in last 24 hours

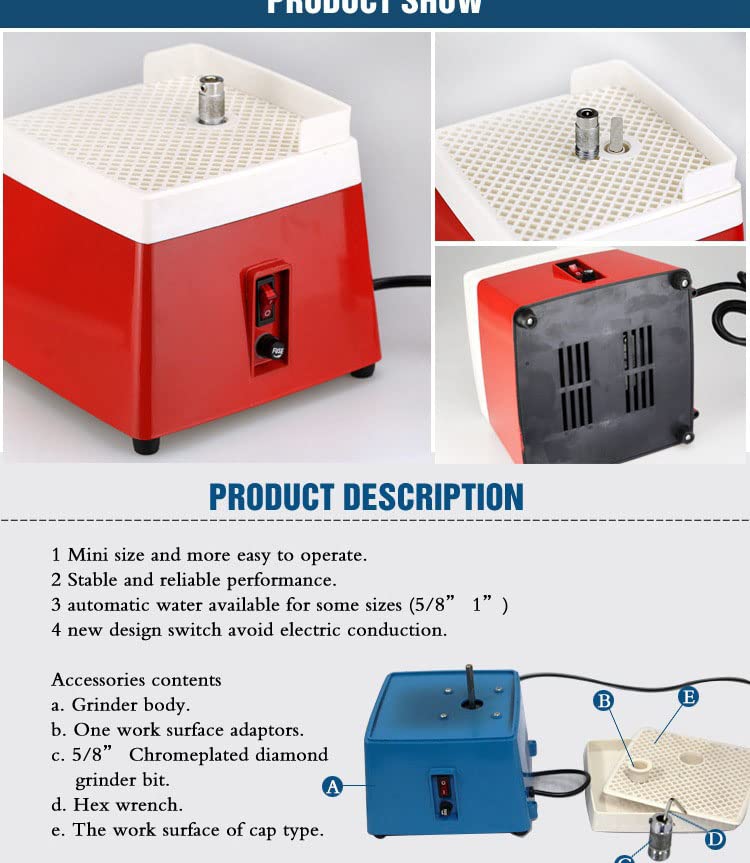

- Easy to operation: Small size, portable glass grinder with powerful 4200 rpm DC motor, Water flow barrier design and the design of the seale parts can double protect the safe power consumption. If necessary, replacing the spare fuse can make the machine run again.
- Automatic water filling: Spiral design of grinder bit base can wick water up onto the grinding wheel and flushing the dust, making the operation more clean and comfortable.
- Used for hardness material processing like glass, ceramic, quickly obtain variety of geometric shapes: plane, curve, rounded corners, slope, etc.
- FREE MCBL58 Grinder wheel. Each machine comes with a free 5/8'' grinder bit. The unique design of spiral base can wick water up onto the grinder bit. No need for sponge.
- Widely Application: It is suitable for glass and ceramics. And it can grind a variety of geometric shapes, such as planes, curves, fillets, bevels, etc. Diamond grinder wheel has a new design and widely raised for glass processing,arts and decoration.
Tags |
Estimated shipping
Select a product to estimate shipping.Product Description
Grinding Wheel Installation:
- Before installation of grinding wheel, topped with lubricant, engine shaft grinding wheels need to apply a layer of lubricant inside.
- The grinding wheel mounted to the engine shaft, the fixed screw position higher than the engine shaft. The position of the grinding wheel on the axle must be at least 1/8" diamond part above the operating table.
- Fixed grinding wheel on the shaft with hexagonal wrench clockwisely.
Installation Note: Maintain stability of the grinding wheel installed in the engine shaft of the plane.

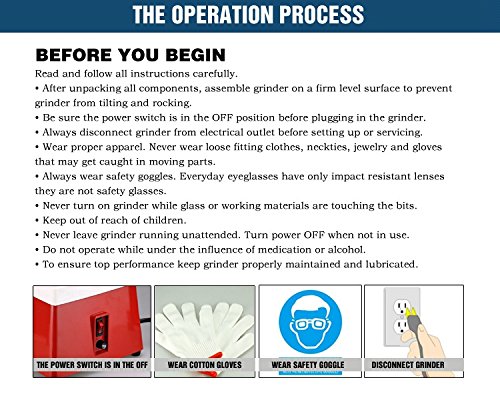

Operation Notice:
1. Can not grinding without water, ensure the grinding wheel is wet
2. When using the grinding wheel, with small strength , don't use too much strength.Too much strength will reduce grinding machine and the service life of the grinding wheel.
3. After use, clean the water reservoir. Remove the reservoir, clean up the rest of the residue after grinding.
4. In order to prolong the service life of grinding machine, cleaning and add lubricant to the engine shaft, 25 hours after each use, remove all the grinding wheel and the fixed screw.
5. If the grinding wheel not be used for a week or longer,it need to grind down on stage to prevent the direct axis stick on.
6. Don't grinding metal.
Specifications:
Color: Red
Voltage: 110V 0.1A
Power: 65W
Rotating speed: 4200 RPM
Working table size: 6.5'' x 6.5''
Machine size: 7.67'' x 7.67'' x 6.29''
Package size: 10'' x 10'' x 10''
Product details
| Main Specification | |
|---|---|
| Produttore | E-Found |
| Conteggio unità | 1 conteggio |
| Dimensioni L x W x H | 7.67"L x 6.6"W x 7"H |
| Velocità massima di rotazione | 4200 rpm |
| Marca | E-Found |
| UPC | 715072616096 |
| Numero di articoli | 1 |
| Componenti inclusi | Drill Bits |
| Fonte di energia | Elettricità a batteria |
| Tensione | 110 Volts |
| Potenza | 65 watt |
| Colore | Rosso |
| Technical Details | |
| Tipo di materiale | Plastic Sheel & pure copper motor |
| Item details | |
| Numero del modello | 013007 |
| Nome dell'oggetto | Set |
| Style | |
| Nome di stile | Portatile or unico or Curve |
| Others | |
| Tipo di prodotto | Set |
