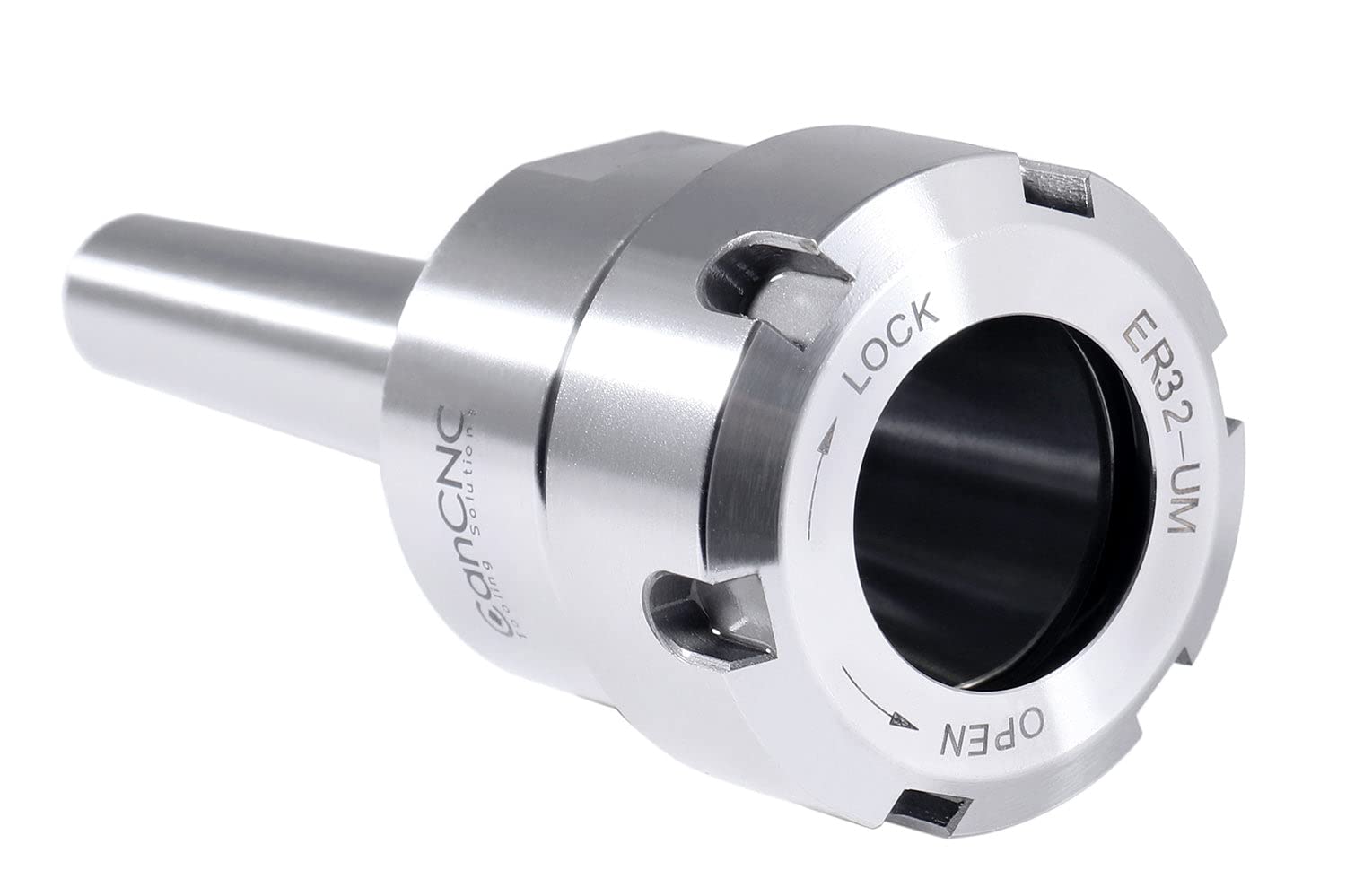

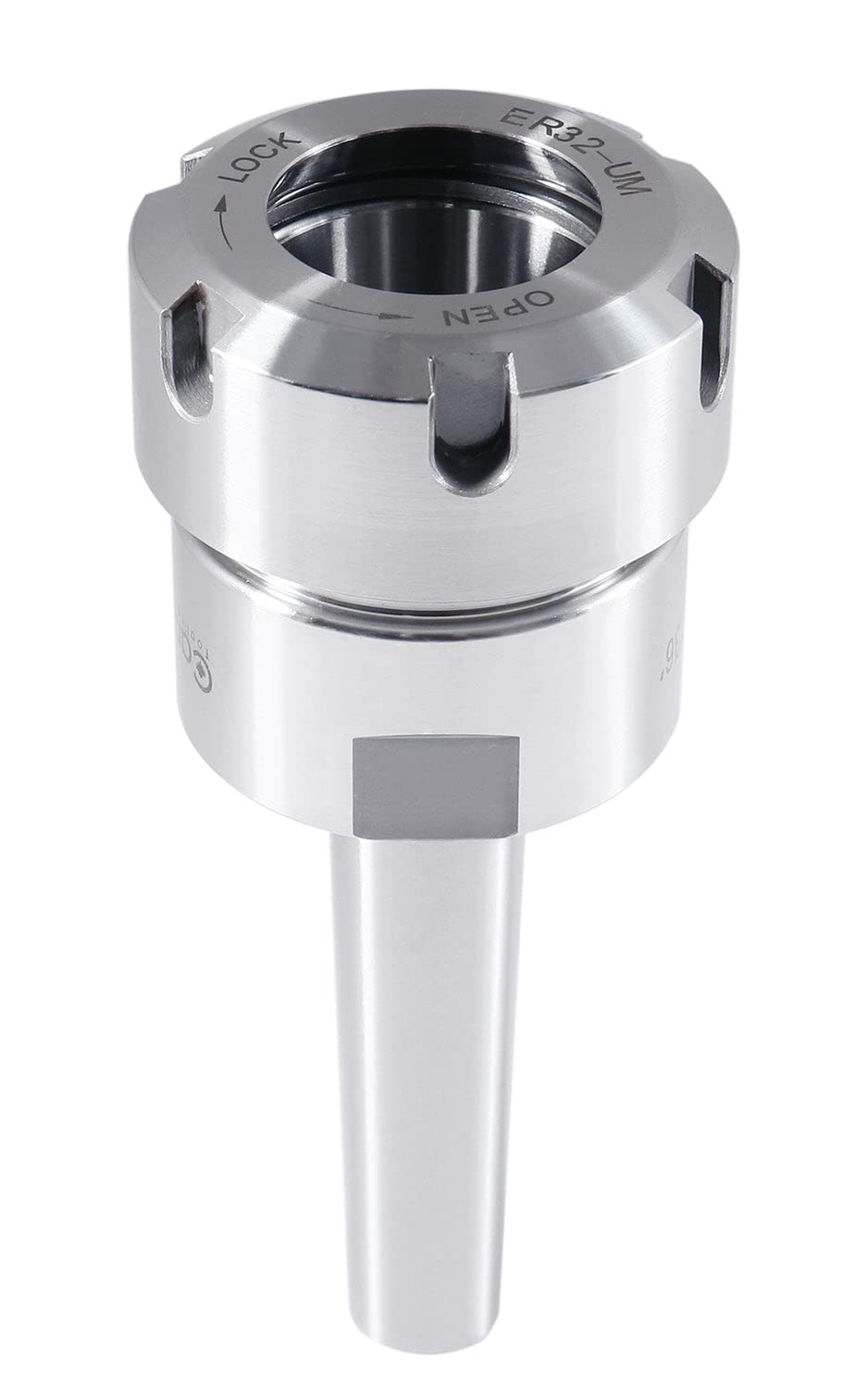

Accusize Industrial Tools Morse Taper MT2 Shank ER32 Collet Chuck, Max 8000 RPM, 3/8"-16 Drawbar End, Max TIR 0.0002'' O.D to I.D, 0223-0235
4 sold in last 24 hours
- Made of high-grade tool steel. Premium hardened & all ground body for extended tool life. Max T.I.R. 0.0002" O.D to I.D. Max RPM: 8000rpm
- Shank: MT2, ER Collet Size: ER32, Gage Length: 2.36", Collet Nut Diameter: 1.97", Drawbar End: 3/8"-16
- Collet Capacity: 0.08" - 0.787", Nut Style: Slotted
- The inside of the ER collet nut is intentionally designed like off-centering to help mount the ER collet much easier. It is in accordance with the requirements listed in ISO 15488:2003(E). If it is made symmetrical, the ER collet with the diameter larger than the inside size of the collet nut cannot be installed.
- MT2 Shank Compatibility: Fits perfectly with manual milling machines equipped with Morse Taper 2 spindles for enhanced machining stability.
- ER32 Collet Adaptability: Enables the use of a wide array of collet sizes from 0.08" to 0.787", broadening the scope of machining tasks.
- Durable Tool Steel Construction: Made from high-grade tool steel, hardened and precision ground for extended tool life and consistent performance.
- Exceptional Precision: Features a maximum Total Indicator Runout (TIR) of 0.0002" O.D to I.D, crucial for achieving superior machining accuracy.
- High-Speed Operational Capability: Designed to perform optimally up to 8000 RPM, accommodating both high-speed and precision milling operations.
Estimated shipping
Select a product to estimate shipping.Accusize 0223-0235 MT2 Shank ER32 Collet Holder
For ER32 collets
Made of high-grade tool steel.
Hardened and precision ground.
Max TIR 0.0002" O.D to I.D.
Max RPM: 8,000 RPM.
The Eccentric Ring is designed per the requirements listed in ISO 15488:2003(E) . It is to hold ER collets in place.
Tilt and insert the collet partway into the nut.
Engage the ring into the collet's groove and press until fully seated.
Tighten the nut lightly with the collet holder.
(Warning: never tighten the nut without a cutter in it as it will break)
Take out the nut from the holder.
Press the end of the ER collet until it disengages from its position.
Push the collet out of the nut.
Product details
| Main Specification | |
|---|---|
| Produttore | Accusize Co., Ltd. |
| Conteggio unità | 1 conteggio |
| Tipo di blocco | Self Centering |
| Marca | Accusize Industrial Tools |
| UPC | 663566026886 |
| Numero di articoli | 1 |
| Capacità | 0.79 inches |
| Componenti inclusi | ER32 Collet Nut |
| Diametro dell'oggetto | 0.79 inches |
| Dispositivi compatibili | Milling Machine |
| Dimensioni del filetto | ER32 |
| Materiale | Acciaio legato |
| Articolo Peso | 0,55 kg |
| Product information | |
| Numero di pacchetti | 1 |
| Technical Details | |
| Numero parte del produttore | 0223-0235 |
| Tipo di materiale | Acciaio legato |
| Tipo di maniglia | mt3-morse-taper-shank-er-collet-chucks-er32 |
| Item details | |
| Numero del modello | 0223-0235 |
| Nome dell'oggetto | Other_tools_and_accessories |
| Others | |
| Tipo di prodotto | Other_tools_and_accessories |
